CUMMINS SERIES DIESEL GENERATOR
Genset Model EC200GFS
Prime Power(kW/kVA) 200/250
Standby Power(kW/kVA) 220/275
CUMMINS DIESEL ENGINE SPECIFICATION
Model 6LTAA8.9-G2
Type water-cooled, in line, 4-stroke, direct injection
Rated Power(kW) 220
Intake Type Turbocharged
No.of Cylinder 6.L
Bore x Stroke(mm) 114x135
Compression Ratio 16.6:1
Mechanical Governor Rate ≦5%
Electronic Governor Rate ≦1%
Noise Level (dBA) ≦75
Exhaust Temperature(°C) 541
Lub oil Capacity(L) 27.6
Displacement(L) 8.9
Rated Fuel Consumption(L/h) 46.4
STAMFORD TECHNOLOGY ALTERNATOR SPECIFICATION
Model 274K
Rated Power(kW/kVA) 200
Power Efficiency 93.3%
Voltage Regulation ≦±1
Set mounted HGM6120 controller
Excitation Type Brushless
Insulation Class H
20' CONTAINER INSTALLED
- Anti-Vibration elements between engine/alternator and base frame
- Battery with battery cables and rack,loose silencer, elbow pipe, supplied with the expansion joint, battery and battery
connections.
- Silencers with fanged flexible connection
- Genset with base frame fuel tank
- English operation/maintenance manuals/test report for engine, alternator and genset
- Standard tools kit
DIMENSIONS (LxWxH) mm 5890X2320X2320
DRY WEIGHT kg 3700
Genset Model EC200GFS
Prime Power(kW/kVA) 200/250
Standby Power(kW/kVA) 220/275
CUMMINS DIESEL ENGINE SPECIFICATION
Model 6LTAA8.9-G2
Type water-cooled, in line, 4-stroke, direct injection
Rated Power(kW) 220
Intake Type Turbocharged
No.of Cylinder 6.L
Bore x Stroke(mm) 114x135
Compression Ratio 16.6:1
Mechanical Governor Rate ≦5%
Electronic Governor Rate ≦1%
Noise Level (dBA) ≦75
Exhaust Temperature(°C) 541
Lub oil Capacity(L) 27.6
Displacement(L) 8.9
Rated Fuel Consumption(L/h) 46.4
STAMFORD TECHNOLOGY ALTERNATOR SPECIFICATION
Model 274K
Rated Power(kW/kVA) 200
Power Efficiency 93.3%
Voltage Regulation ≦±1
Set mounted HGM6120 controller
Excitation Type Brushless
Insulation Class H
20' CONTAINER INSTALLED
- Anti-Vibration elements between engine/alternator and base frame
- Battery with battery cables and rack,loose silencer, elbow pipe, supplied with the expansion joint, battery and battery
connections.
- Silencers with fanged flexible connection
- Genset with base frame fuel tank
- English operation/maintenance manuals/test report for engine, alternator and genset
- Standard tools kit
DIMENSIONS (LxWxH) mm 5890X2320X2320
DRY WEIGHT kg 3700

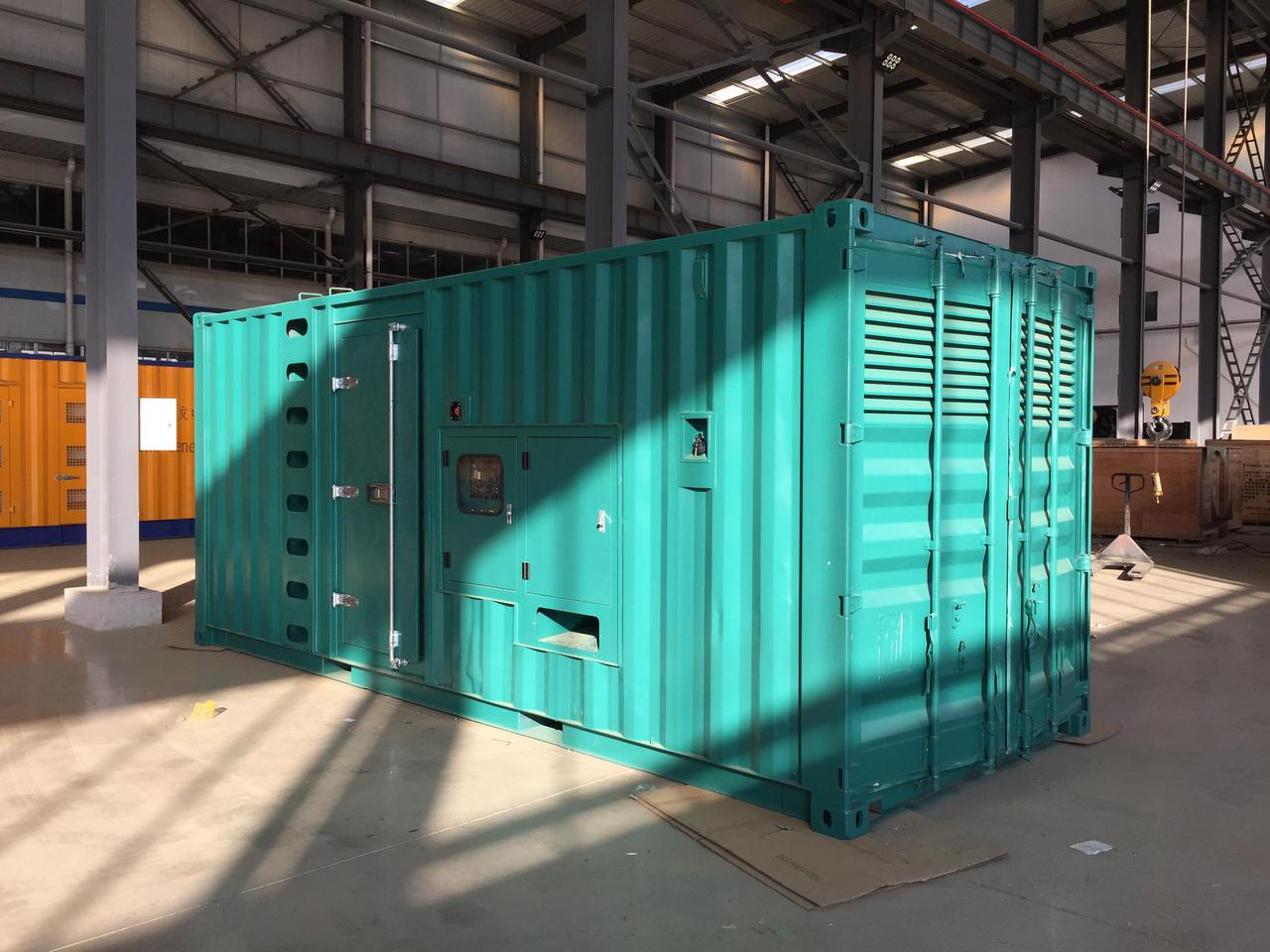

20' DC or 40' DC container installed diesel generator
Power your REXWOOD mobile sawmill anywhere in the forest when power grid is not available or is just not sufficient.
Highly fuel efficient this power solution will save a lot on the logistics cost, allowing you to take from the forest valuable lumber only. Low priced sawdust and wood shavings will be left behind to be processed with timber waste at the logging site.
These are great savings on edged lumber delivery straight out of the forest when compared to timber delivery, you save 40% on the cargo payload of fuel thirsty trucks voyage to stationery sawmills.
Highly fuel efficient this power solution will save a lot on the logistics cost, allowing you to take from the forest valuable lumber only. Low priced sawdust and wood shavings will be left behind to be processed with timber waste at the logging site.
These are great savings on edged lumber delivery straight out of the forest when compared to timber delivery, you save 40% on the cargo payload of fuel thirsty trucks voyage to stationery sawmills.
